Stable Quality
No.1 In The World
- Higher accuracy
- Faster Efficiency
- Better Stability

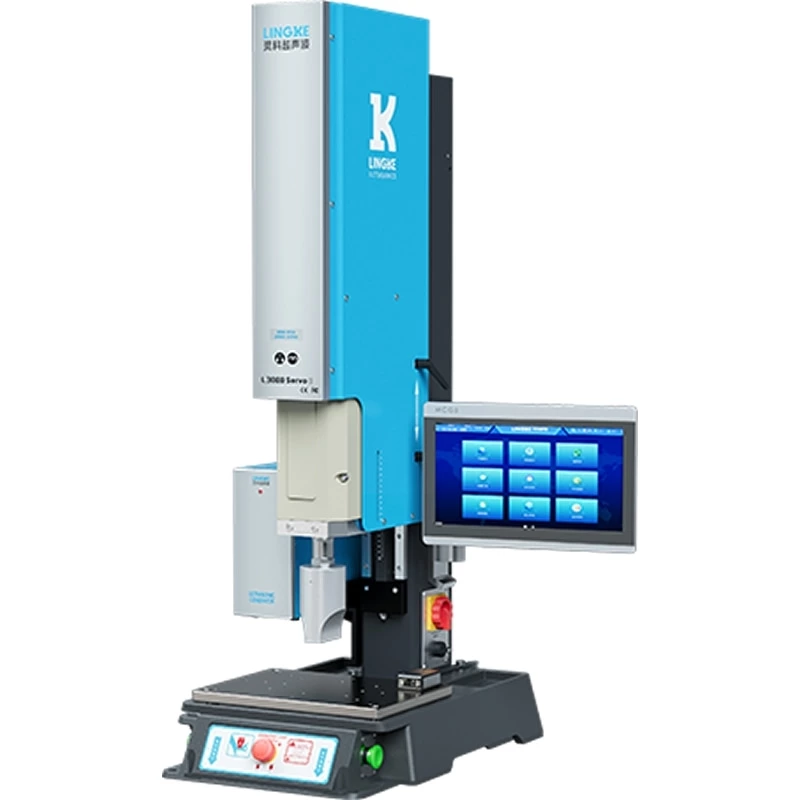

As the core model of Lingke Ultrasonic's high-end series, servo drivetechnology and intelligent control system, with micrometer level preci-sion,intelligent interconnection and full scene adaptability, are special-ly designed for high-precision and high complexity industrial weldingscenes, providing reliable plastic connection solutions for medical, au-tomotive electronics, consumer electronics and other fields.
4 operating modes of digital type: manual mode,time mode,energy mode,and non-standard mode.
3 operating modes of analogtype:manual mode,time mode,and non-standard mode.
Intelligent control feedback function:real-time automaticfrequency tracking and locking, circuit constant voltage function.
Automatic frequency tracking function,with a frequency tracking range of 士 500Hz.
4 operating modes of digitaltype: manual mode,time mode,energy mode,and non-standard mode
Open signal ports for safety grating, acoustic enclosure, base film weld detection and roll film, which can be switched on or off according to requirements
Quality control function: monitoring of frequency, ultrasonic time, energy, power, welding stroke, pressure and other status output parameters as analysis results
Quality control function: the upper and lower limits of welding parameters can be set, and the system automatically determines whether the welding effect is qualified or not according to the limits, and gives a judgment signal
manual mode, time mode,energy mode,and non-standard mode.
time trigger.
pulse start,automated assembly line,European safety mode.
Fault self detection function, real-time automatic frequency tracking function, frequency locking function, circuit constant voltage function.
RS232/485 data docking
welding pressure,cooling pressure control.
| Model | L3000 High End | ||||
|---|---|---|---|---|---|
| Frequency | 20kHz | 15kHz | |||
| Power | 2000w | 2800w | 3200w | ||
| Input voltage | AC220V | AC220V | AC220V | ||
| Cylinder Size(mm) | 63×100-40 | 63×100-40 | 80×100-40 | ||
| Machine Journey | 296mm | 296mm | 296mm | ||
| Output Time | 0.01-9.99s | 0.01-9.99s | 0.01-9.99s | ||
| Air Pressure | >1,≤7bar | >1,≤7bar | >1,≤7bar | ||
| Welding Capability | Φ170mm | Φ240mm | Φ300mm | ||
| Operation Switch | Two-hand release,emergency stop button at the front, and adding external control switch supported. | ||||
| Size(mm) | Press | 680×400×1495 | |||
| generator | 436×124×278 | ||||
| Weight | Press | 112kg | |||
| generator | 8kg | ||||
